Excitation Tube Lens Use

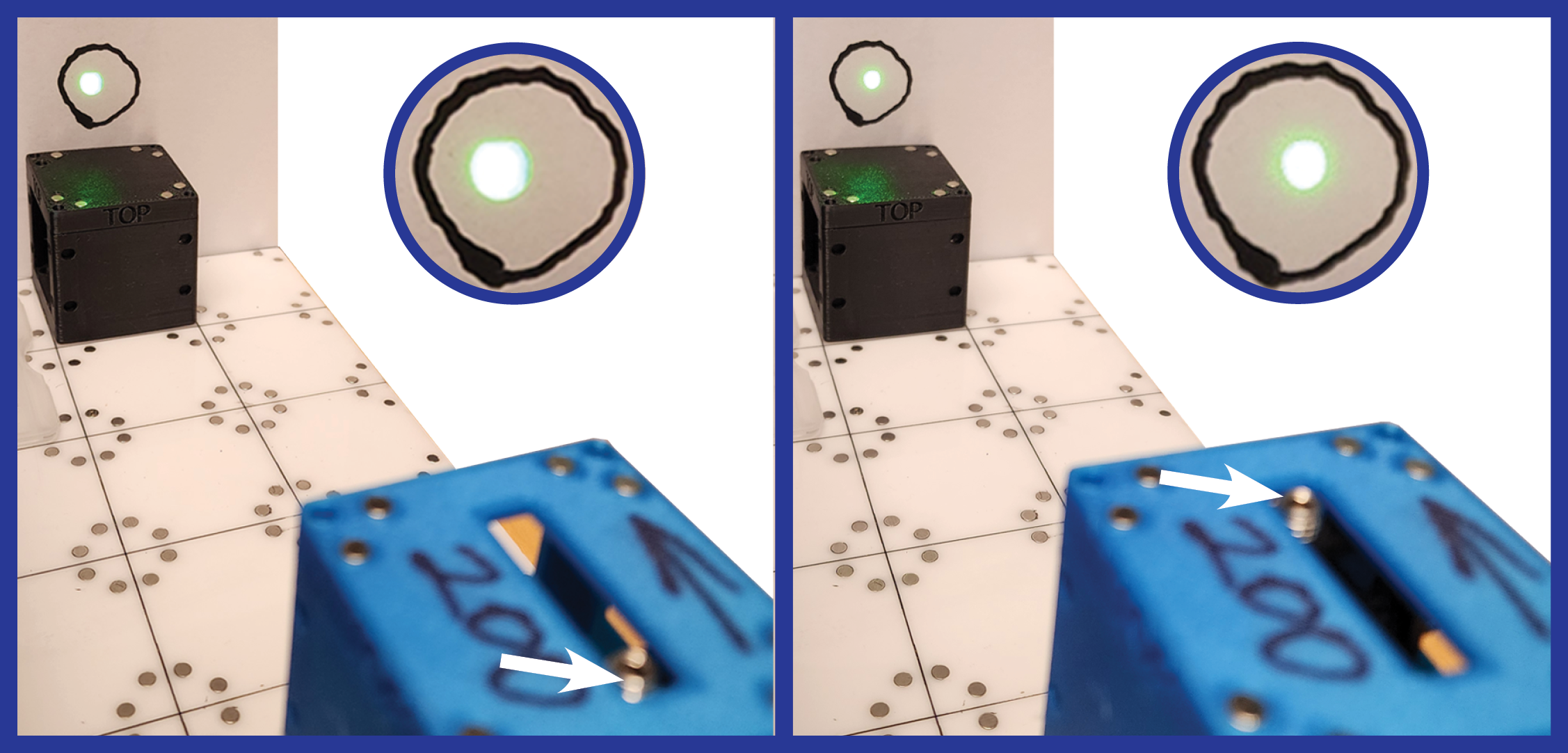

1. Direct the beam path through an f200 lens; if necessary, center the lens by adjusting the set screws.

Tip: Use the same alignment procedure as that used in the beam collimation
